SMPL Thermocouple Amplifier for Type K Sensors

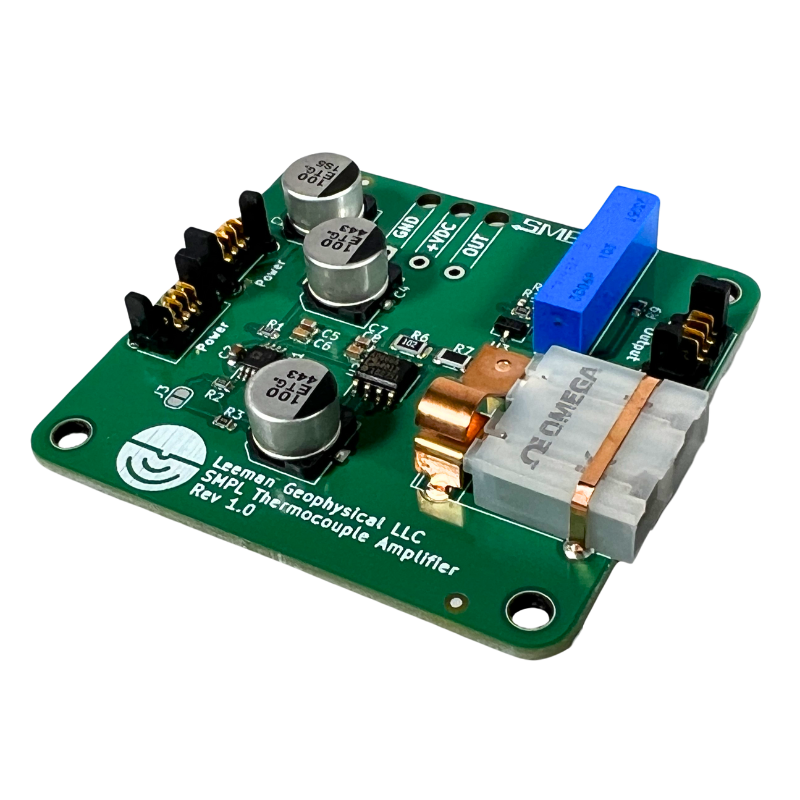

Instrument cover photo.

This documentation covers The following part number: 7-0000203

Overview

Expand your temperature measurement capabilities with the new SMPL Thermocouple Amplifier, specifically designed to integrate seamlessly into the SMPL system. This advanced amplifier converts the tiny voltages produced by Type K thermocouples into a clean, linear analog output that is easy to record and interpret over a wide temperature range.

Ideal for systems already utilizing analog-to-digital converters for other process measurements, the SMPL Thermocouple Amplifier offers precise temperature monitoring, ensuring your processes are running optimally. Whether you’re in an industrial setting or a research environment, this amplifier provides the accuracy and reliability you need.

Features

  • Seamless Integration: Easily connects to the SMPL system, enabling quick and straightforward setup.
  • Wide Temperature Range: Measure temperatures from -25 °C to +400 °C, suitable for most applications.
  • Clean Linear Output: Produces a proportional analog output of 6.7mV/°C, making temperature data simple to interpret.
  • Versatile Applications: Perfect for monitoring temperatures in industrial processes, laboratory experiments, and more.

What's in the Box

Upon receipt of your unit, unpack the contents of the box and inspect all parts for any damage incurred during shipping. Immediately report any missing parts or damage to Leeman Geophysical for replacement.

  • SMPL Thermocouple Amplifier for Type K Sensors PCB

Technical Specifications

  • Ambient Temperature Range: 0 °C to 50 °C
  • Linear Measurement Range: -25 °C to +400 °C
  • Output: 6.7mV/°C and 1.3448 V at 0 °C
  • Connections: 6.7mV/°C and 1.3448 V at 0 °C

Revisions

Date Changes
June 2024 Initial Release
